Globe Valve

Size	NPS 1/2″- 36″
Pressure	Class 150 – 2500
Material	A105, LF2, F11, F22, F5, F304, F316, F304L, F316L, WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M
Design & Manufacture Std.	BS 1873,ASME B16.34
Face to Face Std.	ASME B16.10, DIN 3202, BS2080
End Connection Std.	ASME B16.11, ASME B1.20.1, ASME B16.5, DIN2543-2551
Testing Standard	ISO5208, BS 6755
Structure type	S-Pattern, Oval Pattern, Throttle Pattern, Y pattern, bolted bonnet, pressure seal
Operated Way	Handwheel, Bevel Gear, Pneumatic, Hydraulic, Electric

Size	NPS 4″- 24″
Pressure	Class 150 – 600
Material	A105, LF2, F11, F22, F304L, F316L, WCB, LCB, WC6, CF3/CF3M, CF8/CF8M, AlCu
Design & Manufacture Std.	BS 1873, ASME B16.34
Face to Face Std.	ASME B16.10, DIN 3202, BS2080
End Connection Std.	ASME B16.11, ASME B16.5
Testing Standard	ISO5208, API 598

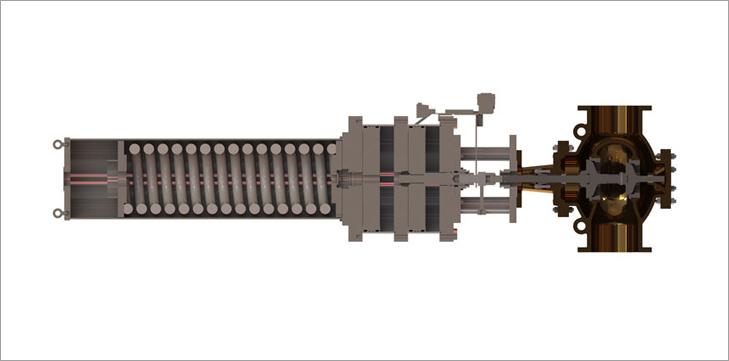

Structure type	Dual seat bolted bonnet
Operated Way	Gear, Pneumatic, Hydraulic, Electric
