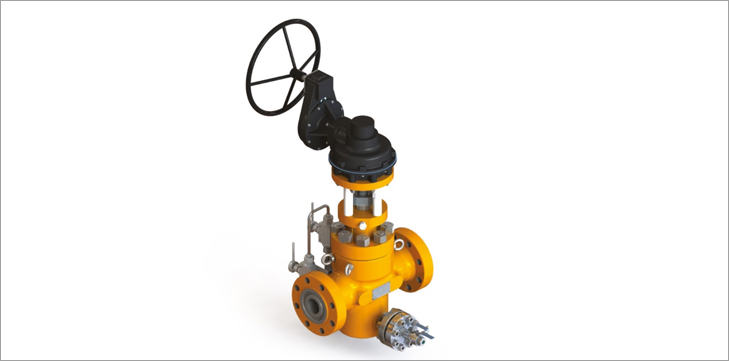

Size |
NPS 1/2″-36″ and from 1 13/16″ to 9″ |
Pressure |
Class 150 – 2500 and from 2000 Psi to 15000 Psi |
Material |
A105, LF2, F11, F22, F5, F60, F304L, F316L, WCB, LCB, WC6, WC9, C12, C5, CF3/CF3M, CF8/CF8M, 4A, 5A, 6A, F51, F55, INC 625 |
Design & Manufacture Std. |
API6A, API 6D, API 6DSS, ASME B16.34 |
Face to Face Std. |
API 6D, API 6A, ASME B16.10, |
End Connection Std. |
ASME B16.11, ASME B16.5, ASME B16.47 |
Test standard |
ISO5208, API 598, API 6D, API 6A |
Structure Type |
Parallel slide, expanding, dual expanding, slab, through condiut, bolted bonnet, pressure seal |
Operated Way |
Bevel Gear, Pneumatic, hydraulic, Electric |

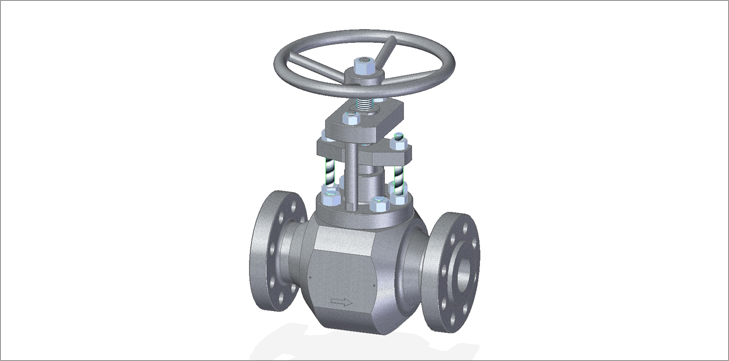

Size |
NPS 2″-30″ |
Pressure |
Class 150-2500 |
Material |
WCB, LCB, LF2, A105, F11, F22, 4A, 5A, 6A CF8/CF8M, CF/CF3M, C12A, CW6MC |
Design & Manufacture Std. |
API 600, ASME B16.34 |
Face to Face Std. |
ASME B16.10, API 600, DIN |
End Connection Std. |
ASME B16.5, ASME B 16.47 |
Test standard |
ISO5208, API 598, BS 6755 |
Structure Type |
Solid or flexible wedge , bolted bonnet |
Operated Way |
Handwheel, Bevel Gear, Pneumatic, Hydraulic, Electric |
Size |
NPS 1/2″-36″ |
Pressure |
Class 150 – 900 |
Material |
A105, LF2, F11, F22, F5, F60, F304L, F316L, F347H, F51, F55, INC 625 |
Design & Manufacture Std. |
API 6D, API 6DSS, ASME B16.34 |
Face to Face Std. |
API 6D, ASME B16.10, |
End Connection Std. |
ASME B16.11, ASME B16.5, ASME B16.47, |
Testing Standard |
ISO5208, API 598, API 6D |
Structure type |
Fully welded contruction, slab, expanding, dual expanding, parallel slide, bolted bonnet |
Operated Way |
Bevel Gear, Pneumatic, hydraulic, Electric |
